Product Details

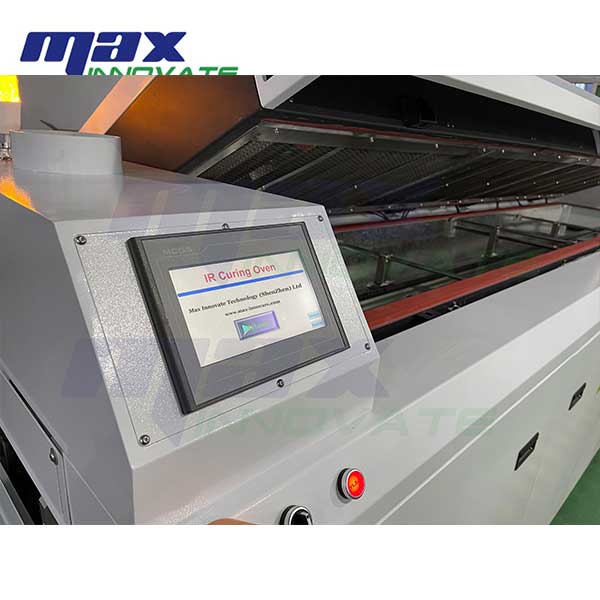

1.Temperature controlled meter control, simple operation;
2.Each zone control by PID temperature controlling, temperature control more accurate for multi zones;
3.Motor runs stable and reliable;

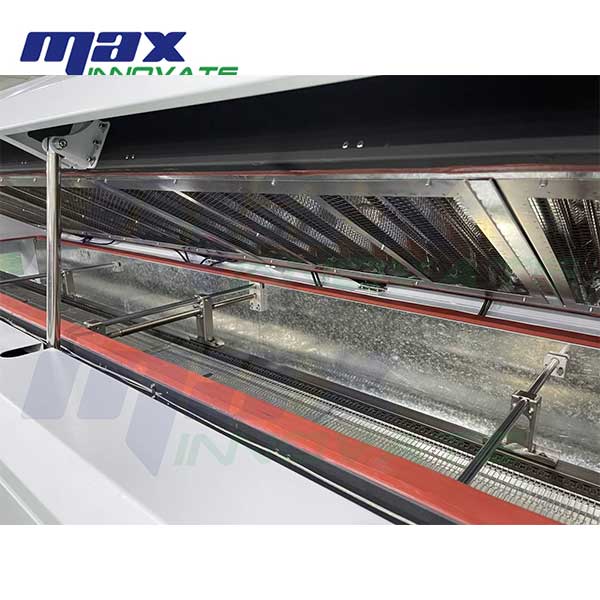

4.Using infrared plus micro-tube hot air circulation heating method, the heating temperature of each zone can be individually controlled, greatly improve the circulation of hot air flow, rapid heating, the maximum temperature is up to 150 ℃; hearth and interior are use of special materials, the external thicker insulation cotton ensure minimum heat loss;

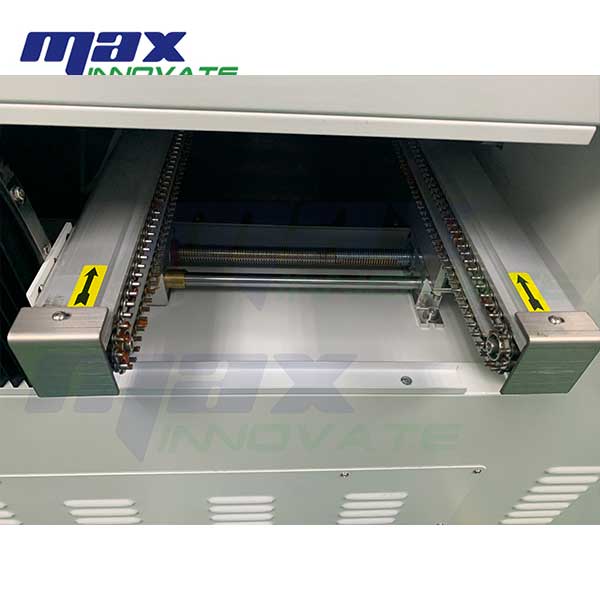

5.Transmission chain fully closed loop control;
6.High-strength guide rail design, thermal deformation, to ensure accuracy;
7.Rail width adjust by manual , control panel, easy to use;
8.Efficient energy saving: start with a very low average power.
Our advantages:
1.We have a high tech team who can provide a series of professional technical support for our customers;
2.We are professional SMT&DIP machine factory in China for over 20 years;
3.Strict QC System. We will check two times with your orders. The first time is during mass production and the second time is prior to shipment. We will check each and test machine before shipment.
4.Competitive price. You can get a competitive price from here. Our price is factory price. Our purpose: customer oriented, quality first.
5.All machine size is customized,provide Non-standard service; We sincerely hope to work together with every client, to build the long-term business and friendship. Believe in us, Believe in professional!
Specifications
| Model IR-CO4000 | Dimensions 4000*960*1250mm | PCB conveyor height 900±20mm |
| PCBA width range 50～400mm | Direction L-R or R-L (optional) | Conveyor speed 700～2000mm/min |
| Conveyor motor power 120w | Temp control range ±1.5℃ | Heating time Approx.20min |
| Brand Max Innovate |
Key Features
Heating zones is customized
High accurate temperature control for multi zones
Mesh belt+chain conveyor is optional,rail width is adjustable
